7246781 7246795 1/2 Body Size Flat Face Quick Release Coupler

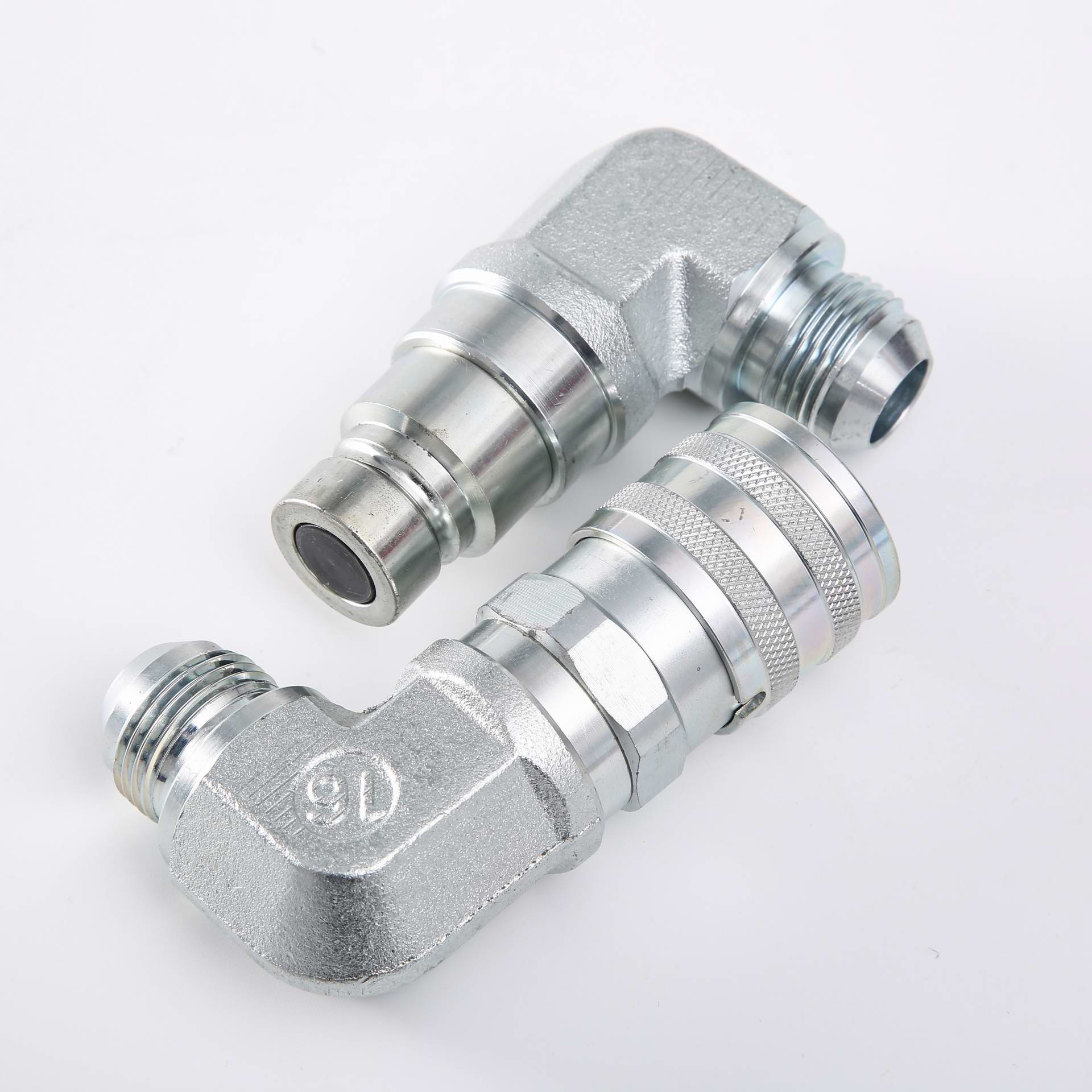

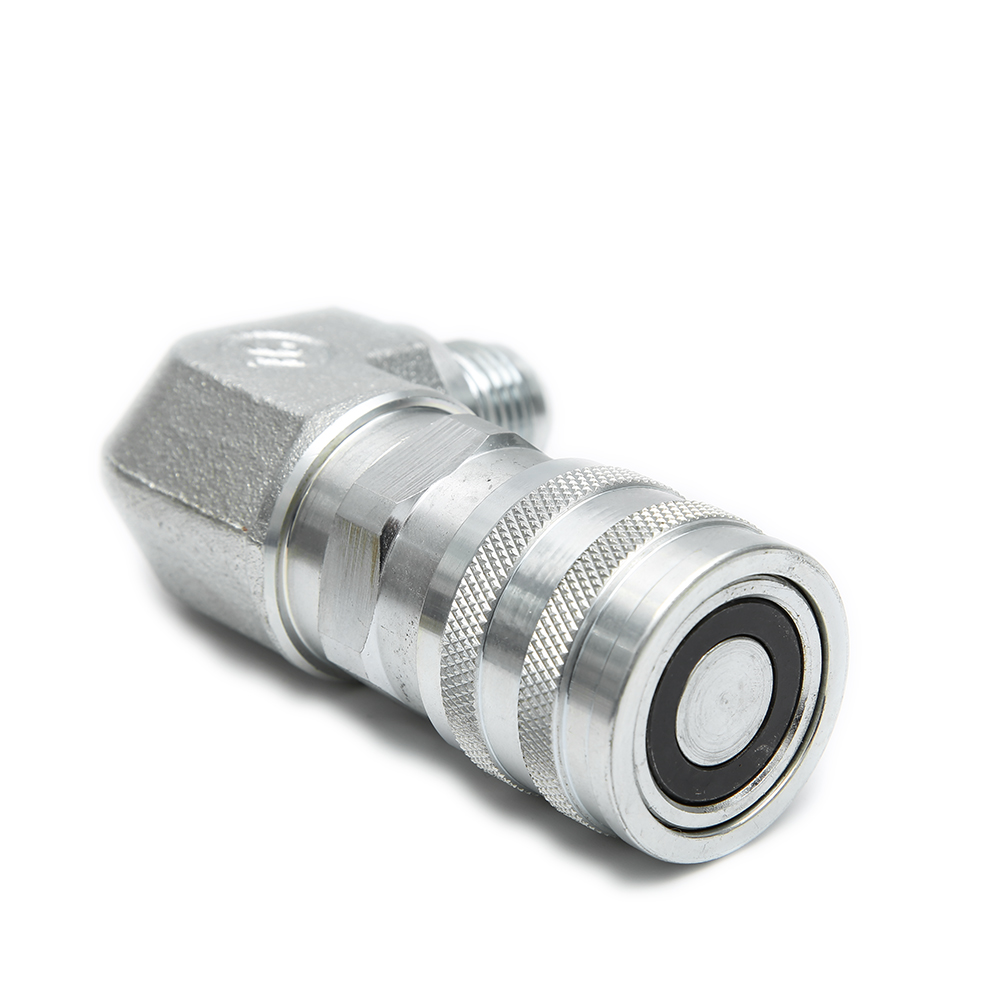

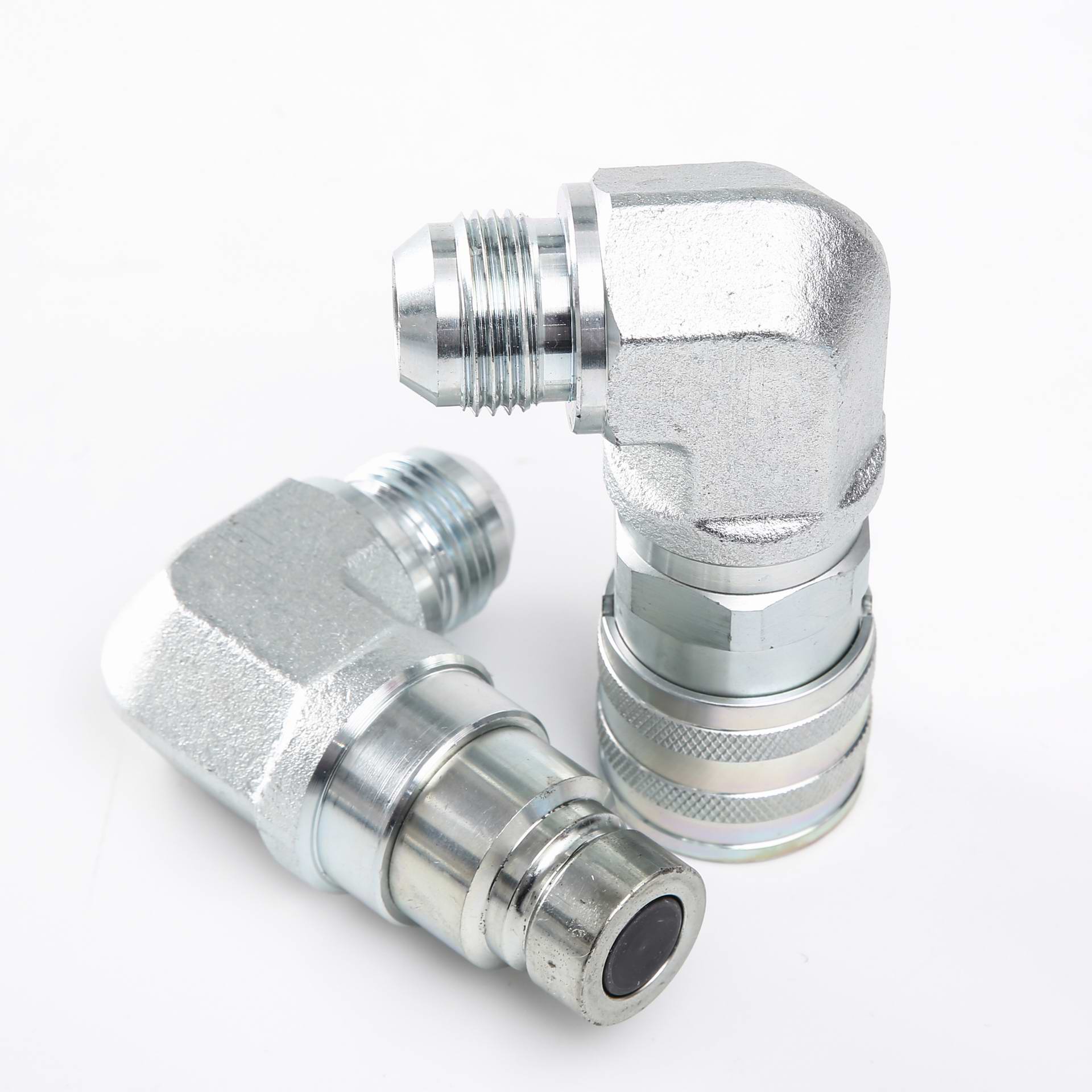

Free Fit ISO 16028 flat face 90 degree hydraulic quick connect coupler set, Convenient connection of curved pipe. Only with 1/2 inch body size, but have 9/16 and 1-1/16 inch JIC thread for choose. This model mainly used for various construction machinery such as skid steer loaders. Working pressure with 20mpa, 25mpa, 30mpa, and 35mpa.
- 90 Degree connection angle prevents damage to hydraulic lines
- Design allows for easy low profile mounting without the need for additional fittings
- Ideal for adding Grapple on Skid Steer or on boom arm of an excavator
- Flush face valve design minimizes fluid loss and air inclusion
- Interchangeable With:SUMMIT FF12F-06J-90/ Faster FFH08-61/38SAE F/Holmbury H12-F-06JM90/Earthforce 7246782EF
